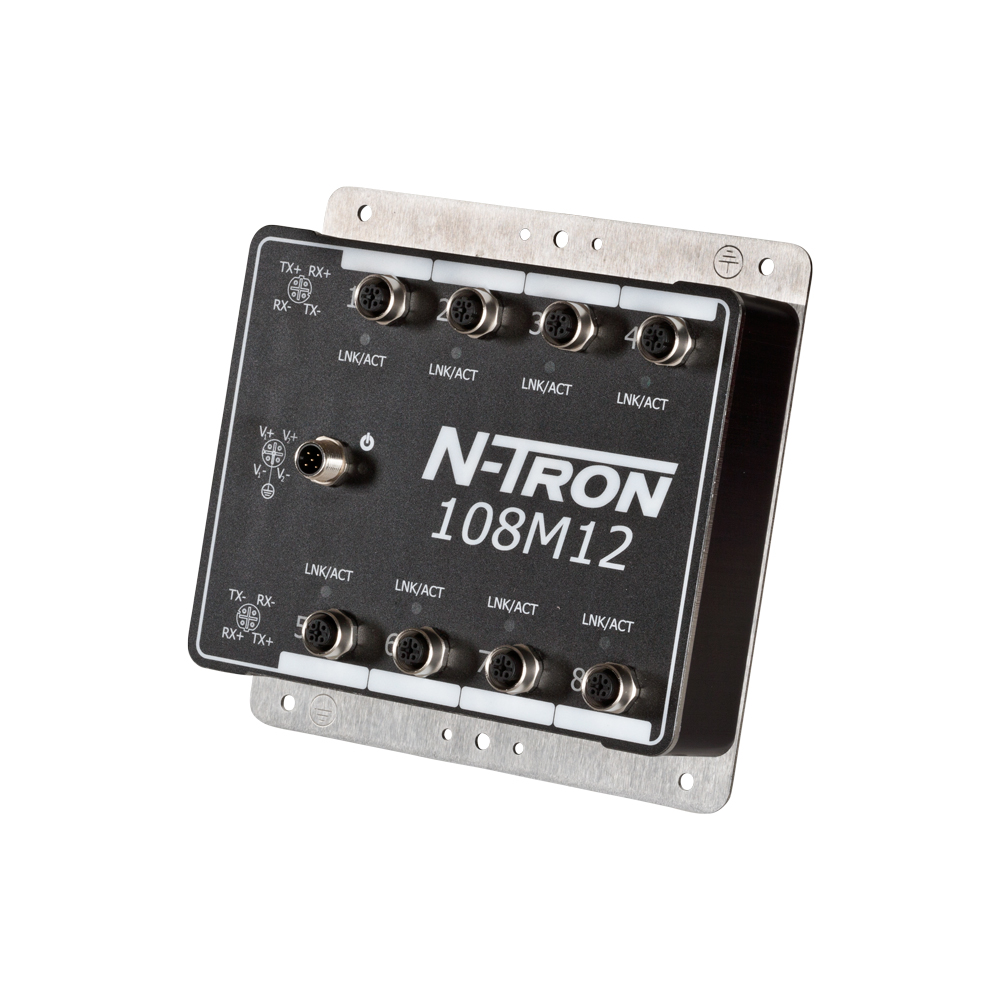

100 Series, 8-Port, N-Tron 108M12 HV IP67 Rated Unmanaged Industrial Ethernet Switch
Red Lion's N-Tron® series 100 unmanaged Ethernet switches offer an array of port configurations and feature a wide operating temperature range. The budget-saving 100 line provides excellent EMI protection and offer hardened metal DIN-rail mountable enclosures to expand your industrial Ethernet network.
Features
- Unmanaged Operation
- IP67 Rated Hardened Metal Enclosure
- Bulkhead Mountable (Optional DIN-Rail mounting)
- Dustproof
- Protection Against low/high Pressure Water Jets
- Temporary Immersion in Water
- Eight 10/100BaseTX Ports
- M12 D-Coded Female 4 Pin Connectors
- Extended Environmental Specifications
- -40° to 70°C Operating Temperature
- >2M Hours MTBF
- Store-and-forward Technology
- Supports Full/Half Duplex Operation
- Up to 1.6 Gb/s Maximum Throughput
- MDIX Auto Sensing Cable
- Auto Sensing Speed and Flow Control
- Full Wire Speed Communications
- Redundant Power Inputs (10-30 VDC)
- Order Model #108M12 for 10-30 VDC Operation
- Order Model #108M12-HV for 10-60 VDC Operation
- ESD Protection Diodes on All Ports
- Surge Protection Diodes on Power Inputs
- LED Link/Activity Status Indication
Red Lion's N-Tron® series 100 unmanaged Ethernet switches offer an array of port configurations and feature a wide operating temperature range. The budget-saving 100 line provides excellent EMI protection and offer hardened metal DIN-rail mountable enclosures to expand your industrial Ethernet network.
Features
- Unmanaged Operation
- IP67 Rated Hardened Metal Enclosure
- Bulkhead Mountable (Optional DIN-Rail mounting)
- Dustproof
- Protection Against low/high Pressure Water Jets
- Temporary Immersion in Water
- Eight 10/100BaseTX Ports
- M12 D-Coded Female 4 Pin Connectors
- Extended Environmental Specifications
- -40° to 70°C Operating Temperature
- >2M Hours MTBF
- Store-and-forward Technology
- Supports Full/Half Duplex Operation
- Up to 1.6 Gb/s Maximum Throughput
- MDIX Auto Sensing Cable
- Auto Sensing Speed and Flow Control
- Full Wire Speed Communications
- Redundant Power Inputs (10-30 VDC)
- Order Model #108M12 for 10-30 VDC Operation
- Order Model #108M12-HV for 10-60 VDC Operation
- ESD Protection Diodes on All Ports
- Surge Protection Diodes on Power Inputs
- LED Link/Activity Status Indication
