1M 6P4C Pigtail, Health L.O., 123459, 45006, 123460 Added, Assembled, DS18AN6HLP-10765

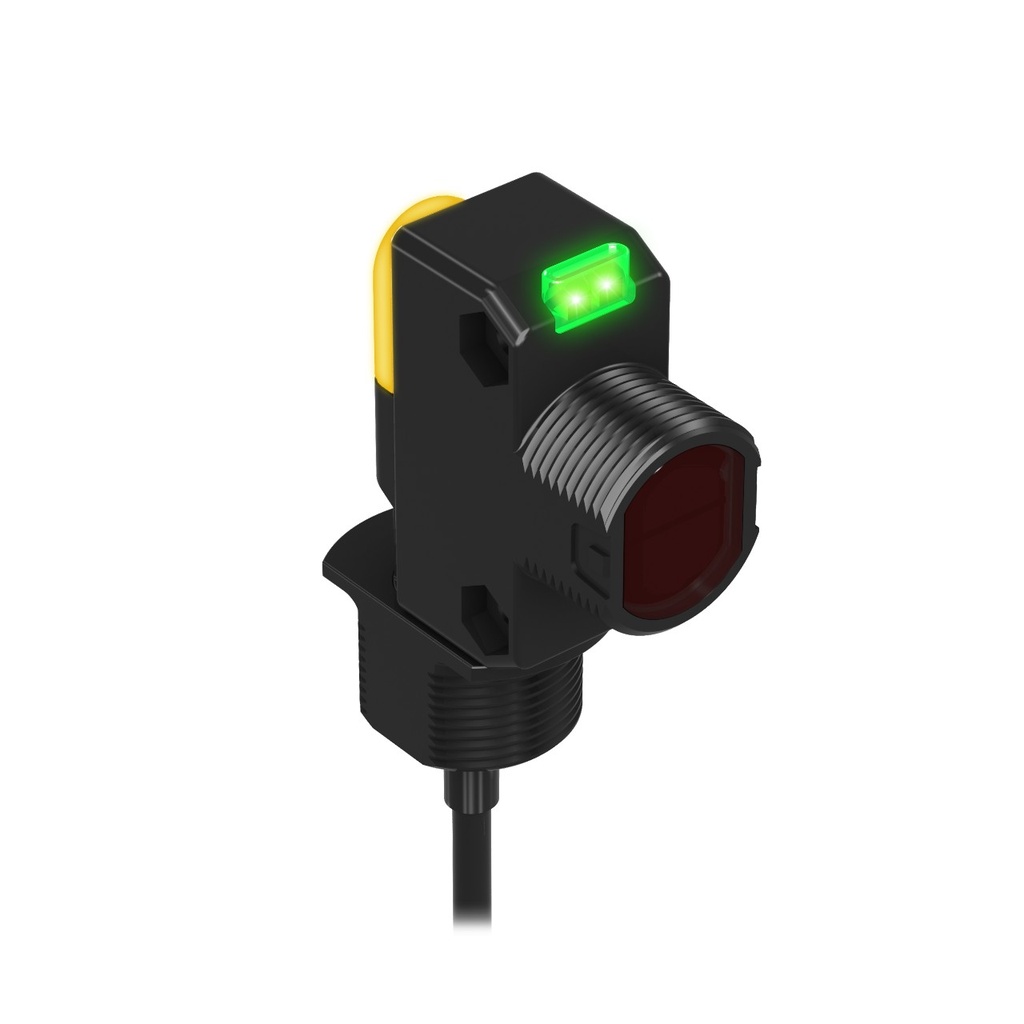

Representative photo. Please check item description for details.

1M 6P4C Pigtail, Health L.O., 123459, 45006, 123460 Added, Assembled, DS18AN6HLP-10765

https://www.branom.com/web/image/product.template/202064/image_1920?unique=c26756c
(0 review)

Features:

    DS18AN6HLP-10765 1M 6P4C PIGTAIL, HEALTH L.O., 123459, 45006, 123460 ADDED, ASSEMBLED
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 350
  • Sensing Beam Wavelength: 660
  • Housing Style: Rectangular w/M18 Mount
  • Max Sensing Distance: 3500 mm
  • Sensing Mode (Detailed): Polarized
  • Sensing Mode (General): Retroreflective
  • Max Relative Humidity: 90% @ 50 °C
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Feature: Audible: No
  • Quick Disconnect Type: RJ11
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 2 ms
  • Operation: Light Operate
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Barrel Diameter: 18
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection: Pigtail QD
  • NEMA / UL: NEMA 6
  • Cord/Cable Length: 1 m
  • Indicator Type: LED
