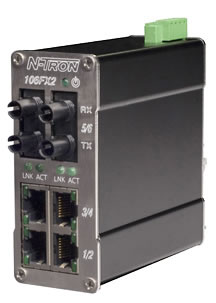

Representative photo. Please check item description for details.
100 Series, 6-Port, N-Tron 106FX2 MDR Unmanaged Ethernet Switch, SC 2km
Red Lion's N-Tron® series 100 unmanaged Ethernet switches offer an array of port configurations and feature a wide operating temperature range. The budget-saving 100 line provides excellent EMI protection and offer hardened metal DIN-rail mountable enclosures to expand your industrial Ethernet network.
Features
- Unmanaged Plug and Play Operation
- 6 Port Industrial Ethernet Switch
- Four 10/100BaseTX RJ-45 Ports
- Two 100BaseFX Multimode Fiber Ports with SC Connectors
- Compact Size, Small Footprint
- IEEE 802.3 Compliance
- Extended Environmental Specifications
-
- -40° to 70°C Operating Temperature
- >2M Hours MTBF
- RJ-45 Ports Support Full/Half Duplex Operation
- Auto Sensing Speed and Flow Control
- Up to 1.2 Gb/s Maximum Throughput
- Store-and-forward Technology
- LED Link/Activity Status Indication
- Redundant Power Inputs (10-30 VDC)
- Hardened Metal DIN-Rail Enclosure
- Metal DIN-Rail Clip Included
Red Lion's N-Tron® series 100 unmanaged Ethernet switches offer an array of port configurations and feature a wide operating temperature range. The budget-saving 100 line provides excellent EMI protection and offer hardened metal DIN-rail mountable enclosures to expand your industrial Ethernet network.
Features
- Unmanaged Plug and Play Operation
- 6 Port Industrial Ethernet Switch
- Four 10/100BaseTX RJ-45 Ports
- Two 100BaseFX Multimode Fiber Ports with SC Connectors
- Compact Size, Small Footprint
- IEEE 802.3 Compliance
- Extended Environmental Specifications
-
- -40° to 70°C Operating Temperature
- >2M Hours MTBF
- RJ-45 Ports Support Full/Half Duplex Operation
- Auto Sensing Speed and Flow Control
- Up to 1.2 Gb/s Maximum Throughput
- Store-and-forward Technology
- LED Link/Activity Status Indication
- Redundant Power Inputs (10-30 VDC)
- Hardened Metal DIN-Rail Enclosure
- Metal DIN-Rail Clip Included
Specifications
| Ethernet: Brand | HMC / Red Lion |
| Ethernet: No. Ports | 6 |
| Ethernet: Ingress Protection | IP30 |
| Ethernet: Ethernet Connector Type | SC |
| Ethernet: Distance Rating | 2 km |
