Plastic Fiber, Opposed Mode (PIF630UMVFA)
Representative photo. Please check item description for details.

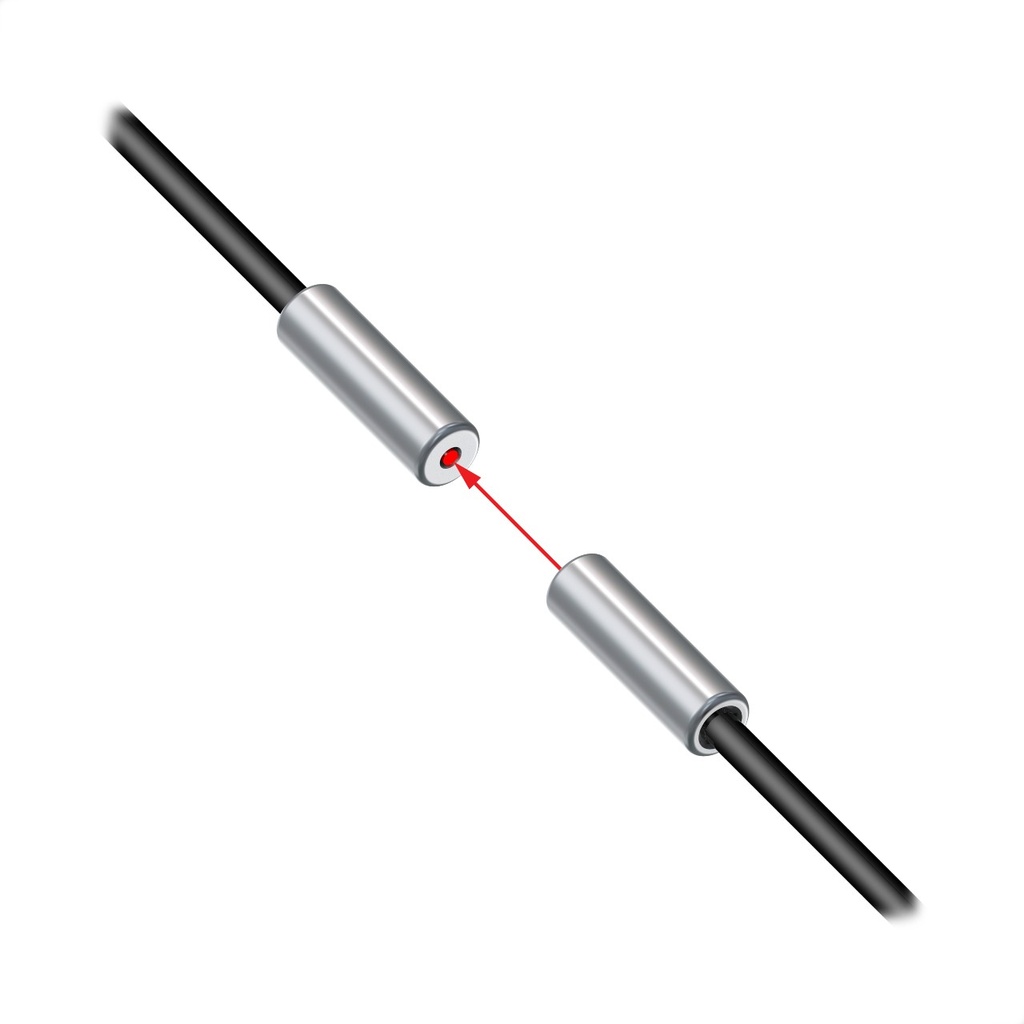

Plastic Fiber, Opposed Mode (PIF630UMVFA)

https://www.branom.com/web/image/product.template/203896/image_1920?unique=c26756c
(0 review)

Features:

    Plastic Fiber, Opposed Mode; Core Dia.: 1.5 mm; Fiber Length 9 m; Ferrule; Free cut
    • Max Operating Temperature: 70 °C
  • Housing Style: Round
  • Sensing Mode (Detailed): Reflective
  • Sensing Mode (General): Opposed
  • Feature: Chemical Resistant: No
  • Sensing End Segment 1: Ferrule
  • Tariff Fiber Meters: 18 fbm
  • Min Bend Radius: 40 mm
  • Feature: Vacuum Feed Through: None
  • Feature: Small Object Detection: No
  • Fiber Sensing End Size: 4.7 mm
  • Feature: Retractile: No
  • Fiber Sensing End Tip: Ferrule
  • Termination: Free Cut
  • Sensing End Material (Specific): Stainless Steel
  • Feature: Integrated Lens: Yes
  • Core Diameter: 1.5 mm
  • Fiber Sheathing Material (Jacket): Polyethylene
  • Feature: Extended Range: No
  • Feature: Flex Relief: No
  • Termination Type: Plastic Fiber Sensors
  • Fiber Sensing End Size - Mounting Area: 4.7 mm
  • Fiber Length: 10 m
  • Fiber Optic Type: Plastic
  • Beam Exit: In-line
  • Feature: Liquid Level: No
  • Min Hinged Door Size: 40 mm
  • Min Repeat Bending Endurance: 10000
  • Max Distance: DF-G1: No Data
  • Max Distance: DF-G3: No Data
  • Max Distance: DF-G2: No Data
  • Minimum Bend Radius: 40 mm
