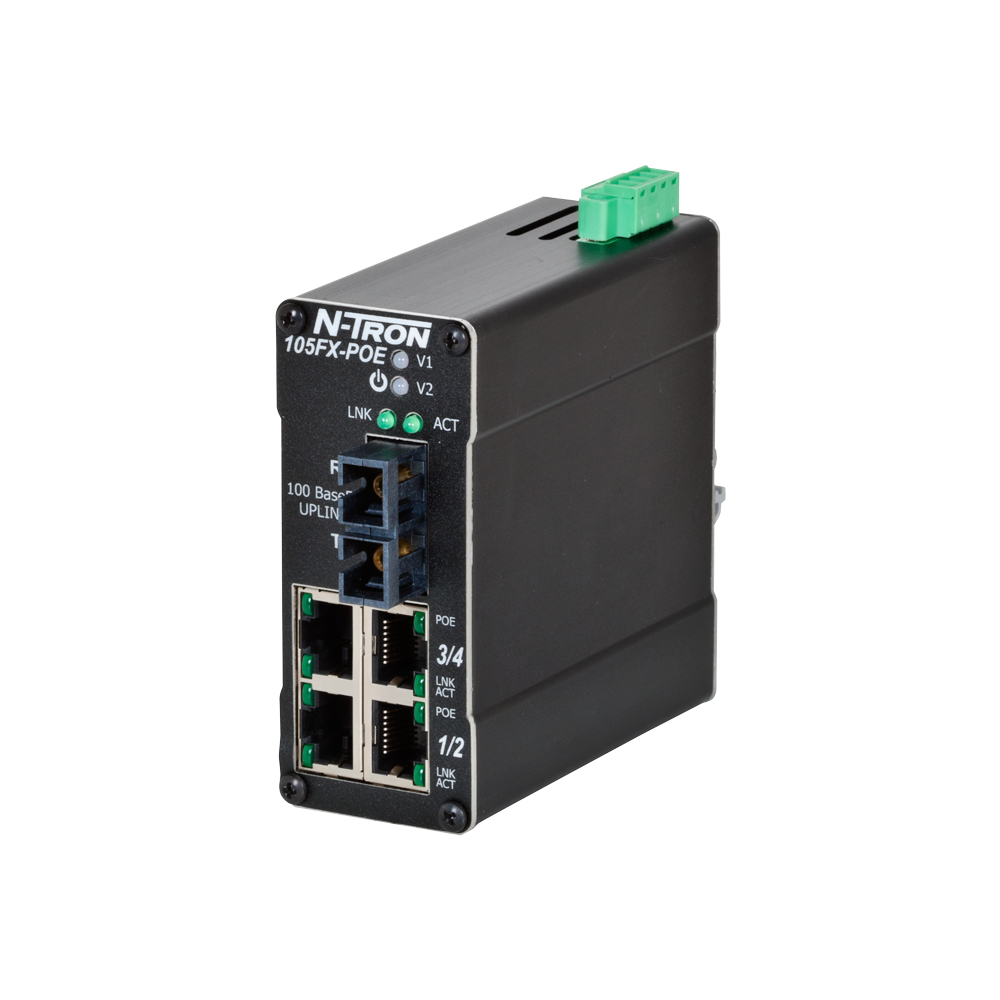

100 PoE Series, 5-Port, N-Tron 105FX Unmanaged Industrial POE Switch, SC 40km
Red Lion's N-Tron series 100-POE products feature industry-standard IEEE 802.3af PoE, wide operating temperature ranges and excellent EMI protection. Our 100-POE unmanaged products offer a wide range of options including PoE switches, injectors and splitters that are cost effective and compact in a metal DIN-rail mountable enclosure that can expand your industrial Ethernet network exponentially.
Features
- Designed to Transmit Power, along with data over an Ethernet Network
- Ideal for PoE Cameras, Wireless Access Point, or other PoE Devices
- Four 10/100BaseTX RJ-45 Ports (4 PoE Ports)
- One100BaseFX Singlemode 40km Port with SC Connectors
- Extended Environmental Specifications
- -40° to 85°C Operating Temperature
- Compact, Space Saving Package
- Full IEEE 802.3 and 802.3af Compliance
- Unmanaged Operation
- Extended Environmental Specifications
- Unmanaged Operation
- Automatic Detection of Connected PoE Devices
- Support for Full/Half Duplex Operation
- Auto-sensing Duplex, Speed, and MDIX
- Up to 1.0 Gb/s Maximum Throughput
- Full Wire Speed Communications
- Supports 15.4 Watts per port (13 Watts at the PD)
- Redundant Power Inputs (46-49 VDC)
- Power Fault Status LED
- LED Link/Activity Status Indication
- LED PoE Status Indication
- Hardened Metal DIN-Rail Enclosure
Red Lion's N-Tron series 100-POE products feature industry-standard IEEE 802.3af PoE, wide operating temperature ranges and excellent EMI protection. Our 100-POE unmanaged products offer a wide range of options including PoE switches, injectors and splitters that are cost effective and compact in a metal DIN-rail mountable enclosure that can expand your industrial Ethernet network exponentially.
Features
- Designed to Transmit Power, along with data over an Ethernet Network
- Ideal for PoE Cameras, Wireless Access Point, or other PoE Devices
- Four 10/100BaseTX RJ-45 Ports (4 PoE Ports)
- One100BaseFX Singlemode 40km Port with SC Connectors
- Extended Environmental Specifications
- -40° to 85°C Operating Temperature
- Compact, Space Saving Package
- Full IEEE 802.3 and 802.3af Compliance
- Unmanaged Operation
- Extended Environmental Specifications
- Unmanaged Operation
- Automatic Detection of Connected PoE Devices
- Support for Full/Half Duplex Operation
- Auto-sensing Duplex, Speed, and MDIX
- Up to 1.0 Gb/s Maximum Throughput
- Full Wire Speed Communications
- Supports 15.4 Watts per port (13 Watts at the PD)
- Redundant Power Inputs (46-49 VDC)
- Power Fault Status LED
- LED Link/Activity Status Indication
- LED PoE Status Indication
- Hardened Metal DIN-Rail Enclosure
Specifications
| Manufacturer Product Family | 100 PoE Series Ethernet Switches |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 85 °C |
| Mounting Options | DIN Rail |
| Case Material | Metal |
| Ethernet Connector Type | SC |
| No. Ports | 5 |
| 100 Fiber Ports | 1 |
| Switch Type | PoE Switch |
| Standards | IEEE802.3af |
