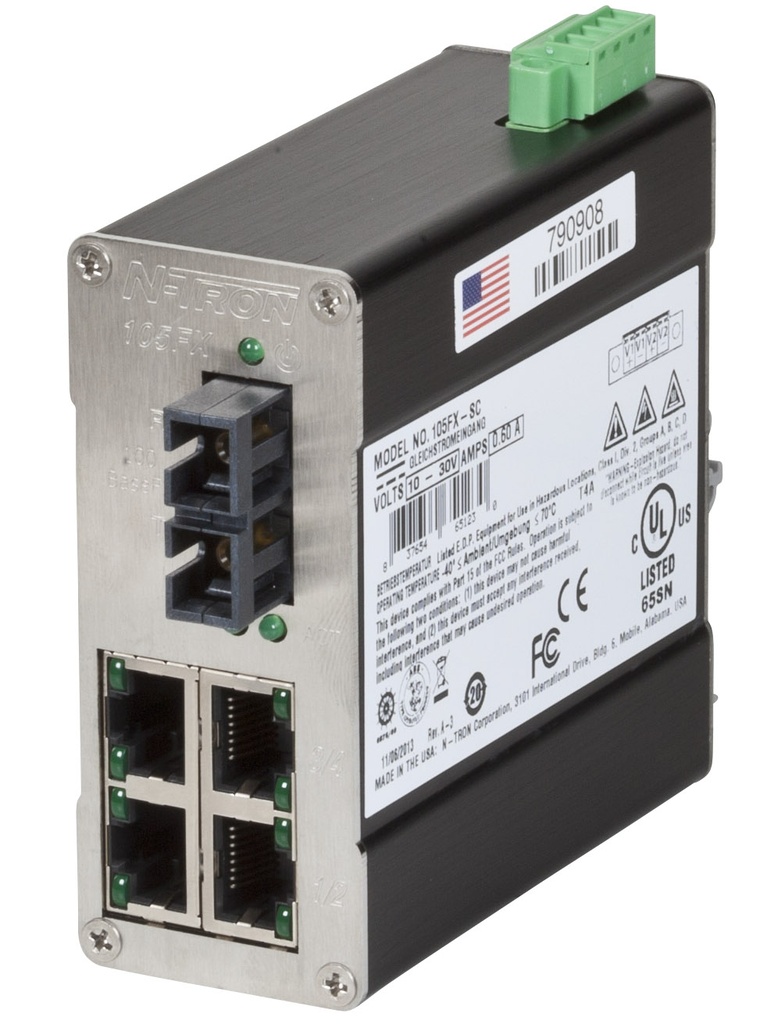

100 Series, 5-Port, N-Tron 105FX MDR Unmanaged Industrial Ethernet Switch, SC 15km
Red Lion's N-Tron® series 100 unmanaged Ethernet switches offer an array of port configurations and feature a wide operating temperature range. The budget-saving 100 line provides excellent EMI protection and offer hardened metal DIN-rail mountable enclosures to expand your industrial Ethernet network.
Features
- Unmanaged Plug and Play Operation
- 5 Port Industrial Ethernet Switch
- Four 10/100BaseTX RJ-45 Ports
- One 100BaseFX Singlemode 15km Fiber Port with SC Connectors
- Compact Size, Small Footprint
- IEEE 802.3 Compliance
- Extended Environmental Specifications
- -40° to 70°C Operating Temperature
- >2M Hours MTBF
- RJ-45 Ports Support Full/Half Duplex Operation
- ESD and Surge Protection on all Built-in Ports
- Auto Sensing Speed and Flow Control
- Up to 1.0 Gb/s Maximum Throughput
- Store-and-forward Technology
- LED Link/Activity Status Indication
- Redundant Power Inputs (10-30 VDC)
- Hardened Metal DIN-Rail Enclosure
- Metal DIN-Rail Clip Included
Red Lion's N-Tron® series 100 unmanaged Ethernet switches offer an array of port configurations and feature a wide operating temperature range. The budget-saving 100 line provides excellent EMI protection and offer hardened metal DIN-rail mountable enclosures to expand your industrial Ethernet network.
Features
- Unmanaged Plug and Play Operation
- 5 Port Industrial Ethernet Switch
- Four 10/100BaseTX RJ-45 Ports
- One 100BaseFX Singlemode 15km Fiber Port with SC Connectors
- Compact Size, Small Footprint
- IEEE 802.3 Compliance
- Extended Environmental Specifications
- -40° to 70°C Operating Temperature
- >2M Hours MTBF
- RJ-45 Ports Support Full/Half Duplex Operation
- ESD and Surge Protection on all Built-in Ports
- Auto Sensing Speed and Flow Control
- Up to 1.0 Gb/s Maximum Throughput
- Store-and-forward Technology
- LED Link/Activity Status Indication
- Redundant Power Inputs (10-30 VDC)
- Hardened Metal DIN-Rail Enclosure
- Metal DIN-Rail Clip Included
Specifications
| Ethernet: Brand | HMC / Red Lion |
| Ethernet: No. Ports | 5 |
| Ethernet: Ingress Protection | IP30 |
| Ethernet: Ethernet Connector Type | SC |
| Ethernet: Distance Rating | 15 km |
