Turck Magnetic Field Sensor, for pneumatic cylinders (BIM-INT-Y1X-0.2-RS4.21T)

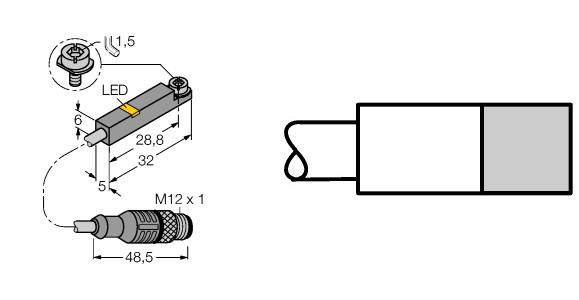

Representative photo. Please check item description for details.

Turck Magnetic Field Sensor, for pneumatic cylinders (BIM-INT-Y1X-0.2-RS4.21T)

https://www.branom.com/web/image/product.template/165858/image_1920?unique=c26756c
(0 review)
Magnetic Field Sensor Features
  • for pneumatic cylinders
  • Cable length (L) 0.2 m
  • Rectangular
  • height 6mm
  • Plastic
  • PA12
  • Magnetic-inductive sensor
  • DC 2-wire
  • nom. 8.2 VDC
  • Output according DIN EN 60947-5-6 (NAMUR)
  • Pigtail with male end
  • M12 x 1
  • ATEX category II 1 G
  • Ex zone 0
  • ATEX category II 1 D
  • Ex zone 20
  • SIL2 (Low Demand Mode) acc. to IEC 61508
  • PL c acc. to ISO 13849-1 at HFT0
  • SIL3 (All Demand Mode) acc. to IEC 61508
  • PL e acc. to ISO 13849-1 with redundant configuration HFT1

$ 144.90 144.9 USD $ 144.90

$ 144.90

Not Available For Sale

  • Case Material
  • Measurement Minimum
  • Output Communication Protocol

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

Magnetic Field Sensor Features

  • for pneumatic cylinders
  • Cable length (L) 0.2 m
  • Rectangular
  • height 6mm
  • Plastic
  • PA12
  • Magnetic-inductive sensor
  • DC 2-wire
  • nom. 8.2 VDC
  • Output according DIN EN 60947-5-6 (NAMUR)
  • Pigtail with male end
  • M12 x 1
  • ATEX category II 1 G
  • Ex zone 0
  • ATEX category II 1 D
  • Ex zone 20
  • SIL2 (Low Demand Mode) acc. to IEC 61508
  • PL c acc. to ISO 13849-1 at HFT0
  • SIL3 (All Demand Mode) acc. to IEC 61508
  • PL e acc. to ISO 13849-1 with redundant configuration HFT1

Specifications

Case Material Plastic
Measurement Minimum 0
Output Communication Protocol NAMUR
