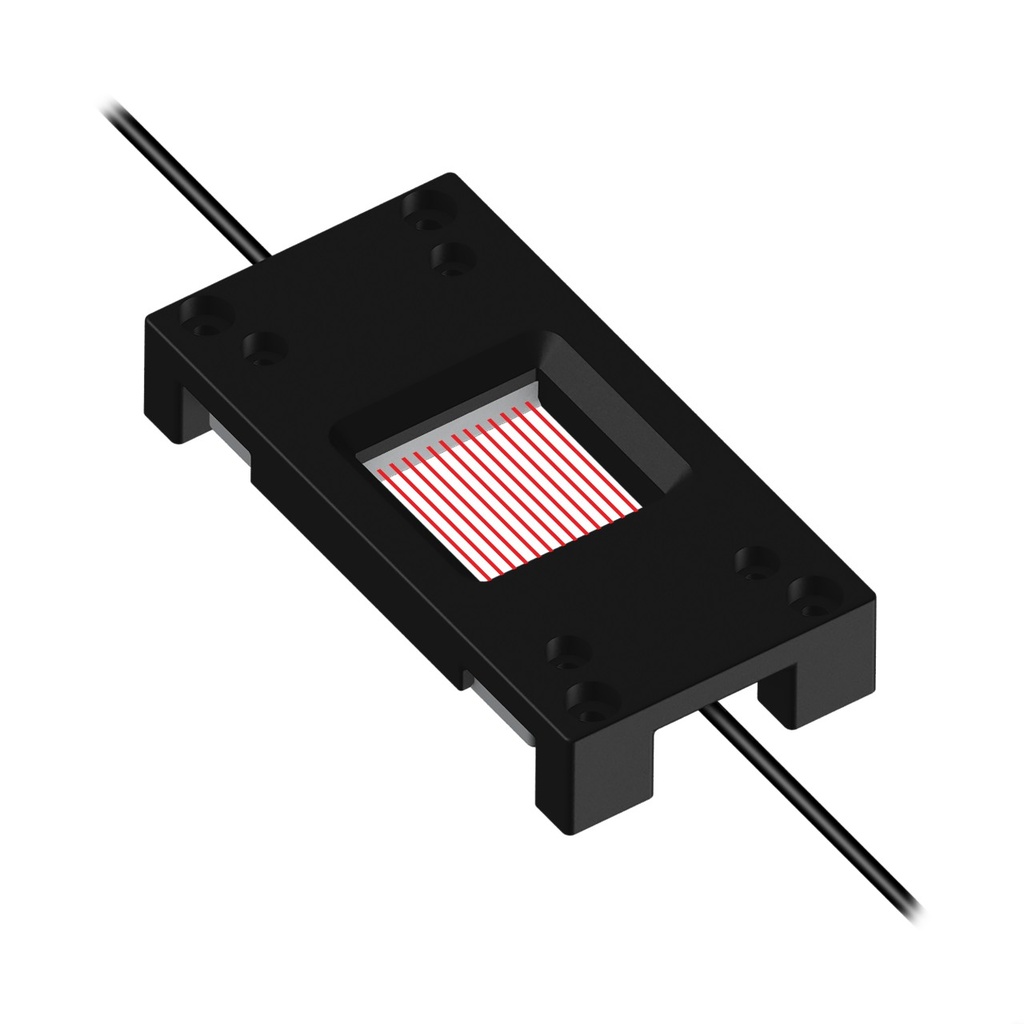

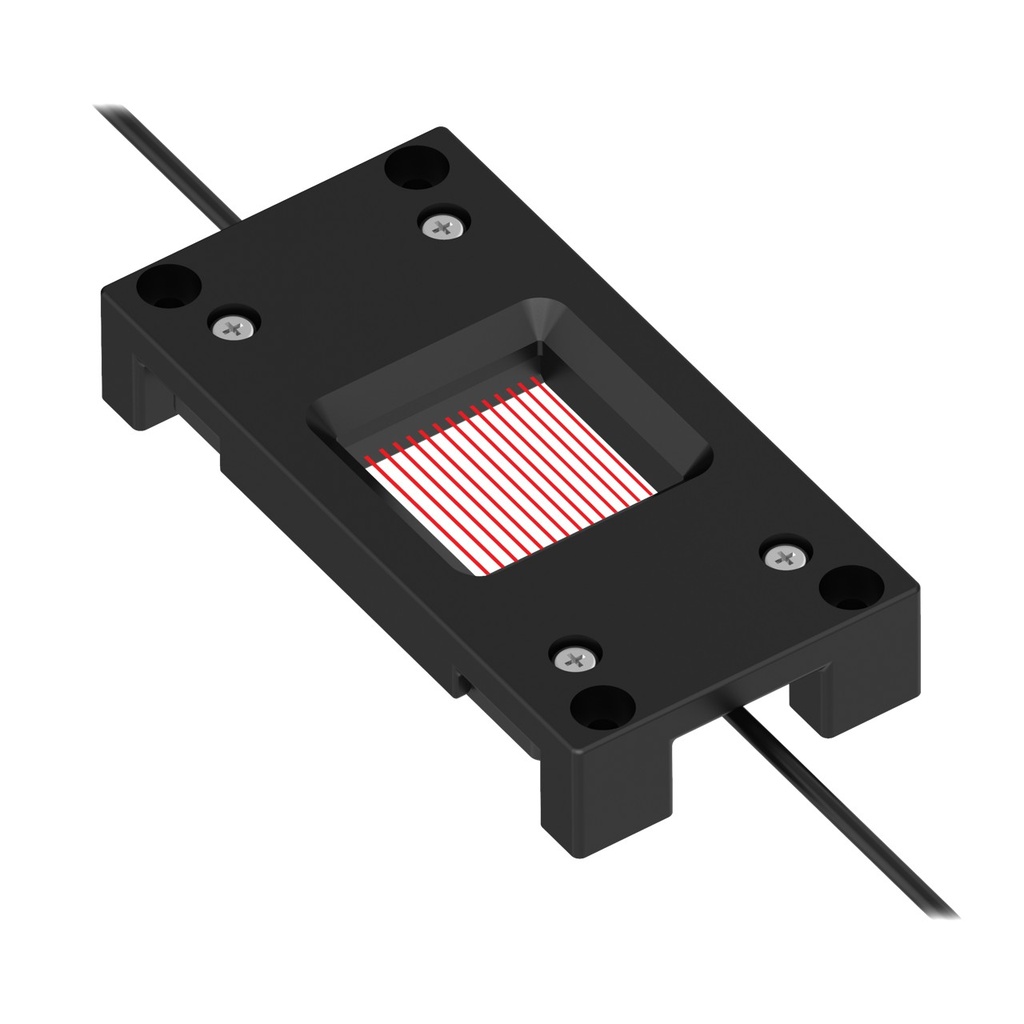

Representative photo. Please check item description for details.

Plastic Fiber, Opposed Mode (PFCVA-25X25-E)

https://www.branom.com/web/image/product.template/940/image_1920?unique=c26756c
(0 review)

Features:

  • Plastic Fiber, Opposed Mode
  • Core Dia.: 16 x 0.25 mm
  • Fiber Length 2 m
  • Array
  • T5 Termination
  • Max Operating Temperature: 70 °C
  • Housing Style: Fixtured
  • Sensing Mode (Detailed): Array
  • Sensing Mode (General): Opposed
  • Array Length: 25 mm
  • Feature: Chemical Resistant: No
  • Sensing End Segment 1: Rectangle
  • Tariff Fiber Meters: 64 fbm
  • Min Bend Radius: 5 mm
  • Feature: Vacuum Feed Through: None
  • Feature: Small Object Detection: Yes
  • Fiber Sensing End Size: 25.0 x 25.0 mm
  • Feature: Retractile: No
  • Fiber Sensing End Tip: Array
  • Termination: Terminated
  • Sensing End Material (Specific): Polyethylene
  • Feature: Integrated Lens: Yes
  • Core Diameter: 16 x 0.3 mm
  • Fiber Sheathing Material (Jacket): Polyethylene
  • Feature: Extended Range: No
  • Feature: Flex Relief: No
  • Termination Type: Plastic Fiber Sensors
  • Fiber Sensing End Size - Mounting Area: 42.0 x 83.0 mm
  • Fiber Length: 2 m
  • Fiber Optic Type: Plastic
  • Sensing End Segment 2: Slot
  • Sensing End Segment 3: Array
  • Beam Exit: In-line
  • Feature: Liquid Level: No
  • Min Hinged Door Size: 5 mm
  • Min Repeat Bending Endurance: 10000
  • Max Distance: DF-G1: No Data
  • Max Distance: DF-G3: No Data
  • Max Distance: DF-G2: No Data
  • Slot Width: 25 mm
  • Minimum Bend Radius: 5 mm

$ 240.00 240.0 USD $ 240.00

$ 240.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share
