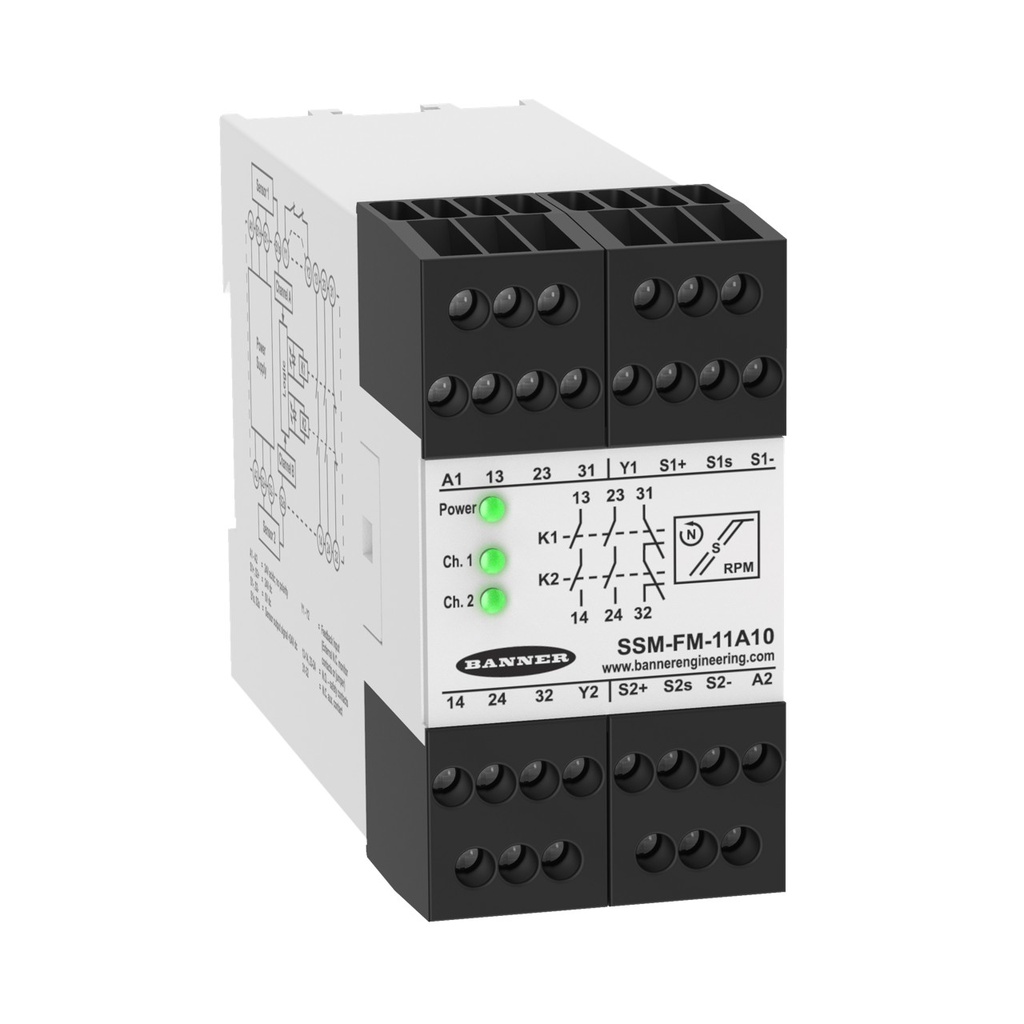

Representative photo. Please check item description for details.

Safety Speed Module (SSM-FM-11A10)

https://www.branom.com/web/image/product.template/873/image_1920?unique=c26756c
(0 review)

Features:

  • Safety Speed Module
  • Supply Voltage: 24 V ac/dc
  • Input: Two Sensors with PNP Outputs
  • Output: 2 NO, 4 Amp
  • Aux Output: 1 NC, 4 Amp
  • Terminal Block: Removable
  • Width: 45mm
  • Self-Checking Circuitry, Detectable Speed Range 5 to 10,500 ipm
  • Max Operating Temperature: 50 °C
  • Power Consumption: 2.5 W / 4 VA
  • Ingress Protection: IP20
  • Device Type: Safety Relay
  • Feature: PCCC: No
  • Feature: Has EtherNet/IP: No
  • Feature: Modbus/TCP: No
  • Supply Voltage: 24 VAC/dc +/- 10%
  • Safety Module Type: Safe Speed Module
  • Independently Controlled Safe Outputs: 1
  • PL Rating: e
  • Non Safe Output Rating: Relay - 4 A
  • Safety Input - Dual Channel (Solid-State): 3-25 mA @ 24 VDC (PNP)
  • SISTEMA: PFHd = 1.74 x 10-10
  • Relative Humidity: 90% @ 50 °C
  • Vibration: 10-55 Hz at 0.35 mm
  • Feature: LCD Display: No
  • SIL Rating: 3
  • Safety Category Rating: 3
  • Input Configuration: 2 PNP
  • Terminal Type: Screw
  • Input Operation: Simultaneous
  • Number of Safe Inputs: 1
  • Safety Mat: No
  • Recovery Time: 1500 ms
  • Response Time: 700 ms
  • Non Safe Output Configuration: 1 NC
  • Number of Stored Colors: 1
  • Feature: Common Ethernet Protocol: No
  • Electrical Life: 1,000,000 @ 440 VA
  • Feature: E-Stops/Rope Pulls: No
  • Feature: Expandable: No
  • Feature: Removable Terminals: Yes
  • Feature: Gate Switch (NC/NC) Input: No
  • Feature: Gate Switch (NC/NO) Input: No
  • Feature: Gate Switch (OSSD) Input: No
  • Feature: Light Curtains/Scanner with EDM Input: No
  • Feature: Light Curtains/Scanner without EDM Input: No
  • Feature: Motor Speed: Yes
  • Feature: Muting: No
  • Feature: Safety Mat: No
  • Feature: In-Series Diagnostics: No
  • Mechanical Life: 50 mil
