100 Series Mechanical Compact High Pressure Switch, 3,000 to 6,000 psig, 1/8" NPT-Male, SPST, N.C., Spade Terminals (1/4 x 1/32)

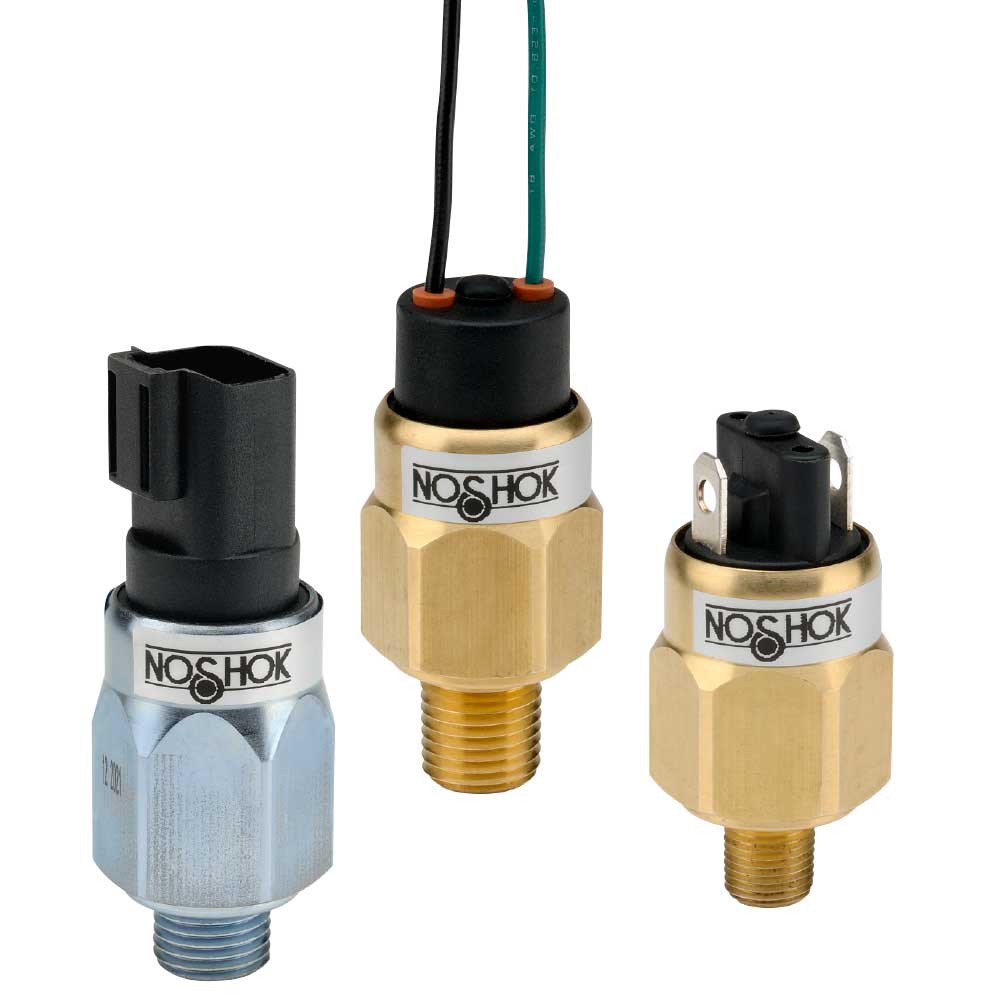

Representative photo. Please check item description for details.

100 Series Mechanical Compact High Pressure Switch, 3,000 to 6,000 psig, 1/8" NPT-Male, SPST, N.C., Spade Terminals (1/4 x 1/32)

https://www.branom.com/web/image/product.template/498538/image_1920?unique=c26756c
(0 review)

  • Switch adjustment ranges from vacuum through 6,000 psi depending on model
  • Standard Brass with NBR diaphragm wetted parts
  • SPST creep action switch with Silver-plated contacts
  • CE compliant to suppress Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD)

Applications:

  • Hydraulics & pneumatics
  • Pumps & compressors
  • Tank monitoring
  • Leak detection
  • Water management

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov


$ 51.10 51.1 USD $ 51.10

$ 51.10

Not Available For Sale

  • Measurement Maximum
  • Process Connection Type
  • Pressure Range
  • Min Operating Pressure
  • Max Operating Pressure
  • Min Operating Temperature
  • Product Unit of Measure
  • Max Operating Temperature
  • Process Connection Size
  • Case Material
  • Wetted Material
  • Measurement Minimum
  • Ingress Protection
  • Switch Function
  • Electrical Connector Type

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

  • Switch adjustment ranges from vacuum through 6,000 psi depending on model
  • Standard Brass with NBR diaphragm wetted parts
  • SPST creep action switch with Silver-plated contacts
  • CE compliant to suppress Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD)

Applications:

  • Hydraulics & pneumatics
  • Pumps & compressors
  • Tank monitoring
  • Leak detection
  • Water management

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specifications

Measurement Maximum 6000.0
Process Connection Type NPT-Male
Pressure Range 3,000 psig to 6,000 psig (9,000 psig)
Min Operating Pressure 3,000 psig
Max Operating Pressure 6000 psig
Min Operating Temperature -13 °F
Product Unit of Measure psig
Max Operating Temperature 185 °F
Process Connection Size 1/8"
Case Material Plated Steel
Wetted Material Zinc-Nickel Plated Steel, NBR diaphragm
Measurement Minimum 3000
Ingress Protection IP00
Switch Function SPST, N.C.
Electrical Connector Type Spade Terminals
