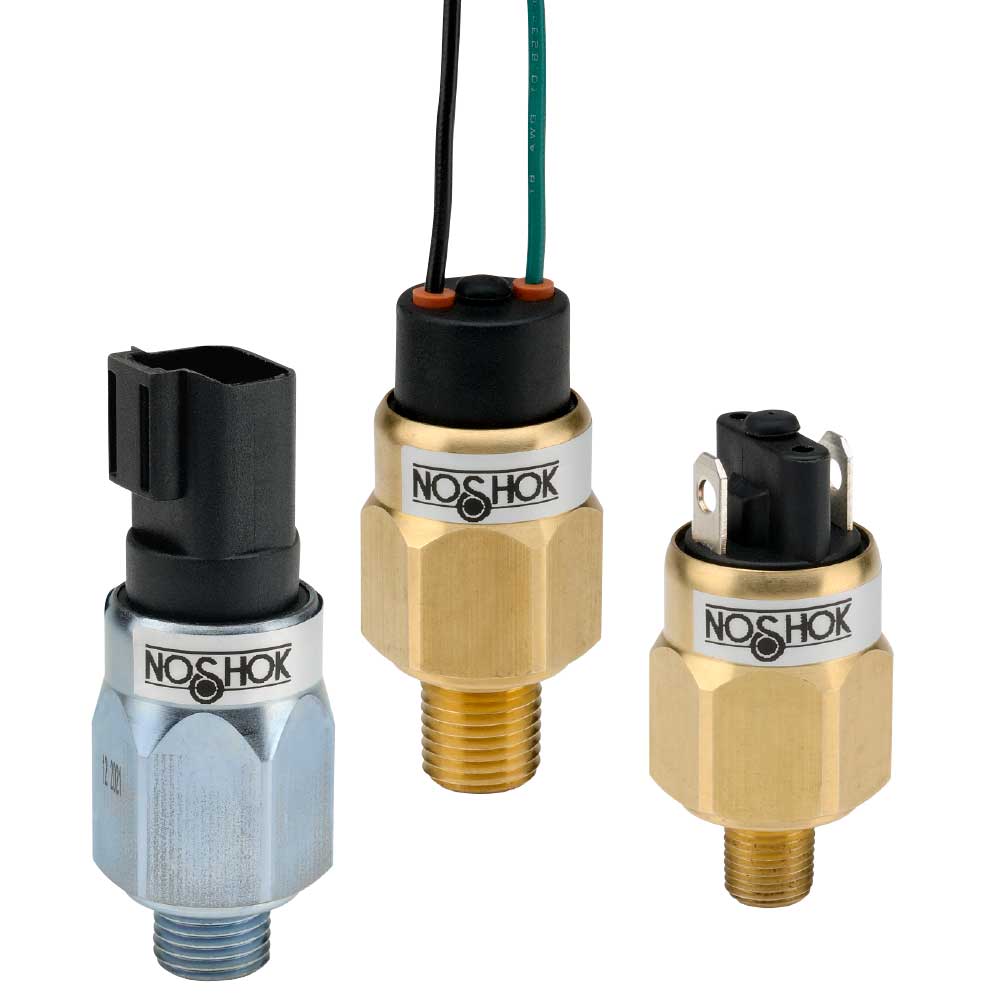

100 Series Mechanical Compact High Pressure Switch, 3,000 to 6,000 psig, 1/8" NPT-Male, SPST, N.O., Weatherpack Shroud, 2-Pin Female
- Switch adjustment ranges from vacuum through 6,000 psi depending on model
- Standard Brass with NBR diaphragm wetted parts
- SPST creep action switch with Silver-plated contacts
- CE compliant to suppress Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD)
Applications:
- Hydraulics & pneumatics
- Pumps & compressors
- Tank monitoring
- Leak detection
- Water management
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Switch adjustment ranges from vacuum through 6,000 psi depending on model
- Standard Brass with NBR diaphragm wetted parts
- SPST creep action switch with Silver-plated contacts
- CE compliant to suppress Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD)
Applications:
- Hydraulics & pneumatics
- Pumps & compressors
- Tank monitoring
- Leak detection
- Water management
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Measurement Maximum | 6000.0 |
| Process Connection Type | NPT-Male |
| Pressure Range | 3,000 psig to 6,000 psig (9,000 psig) |
| Min Operating Pressure | 3,000 psig |
| Max Operating Pressure | 6000 psig |
| Min Operating Temperature | -13 °F |
| Product Unit of Measure | psig |
| Max Operating Temperature | 185 °F |
| Process Connection Size | 1/8" |
| Case Material | Plated Steel |
| Wetted Material | Zinc-Nickel Plated Steel, NBR diaphragm |
| Measurement Minimum | 3000 |
| Ingress Protection | IP69 |
| Switch Function | SPST, N.O. |
| Electrical Connector Type | Weatherpack Shroud, 2-Pin Female |
