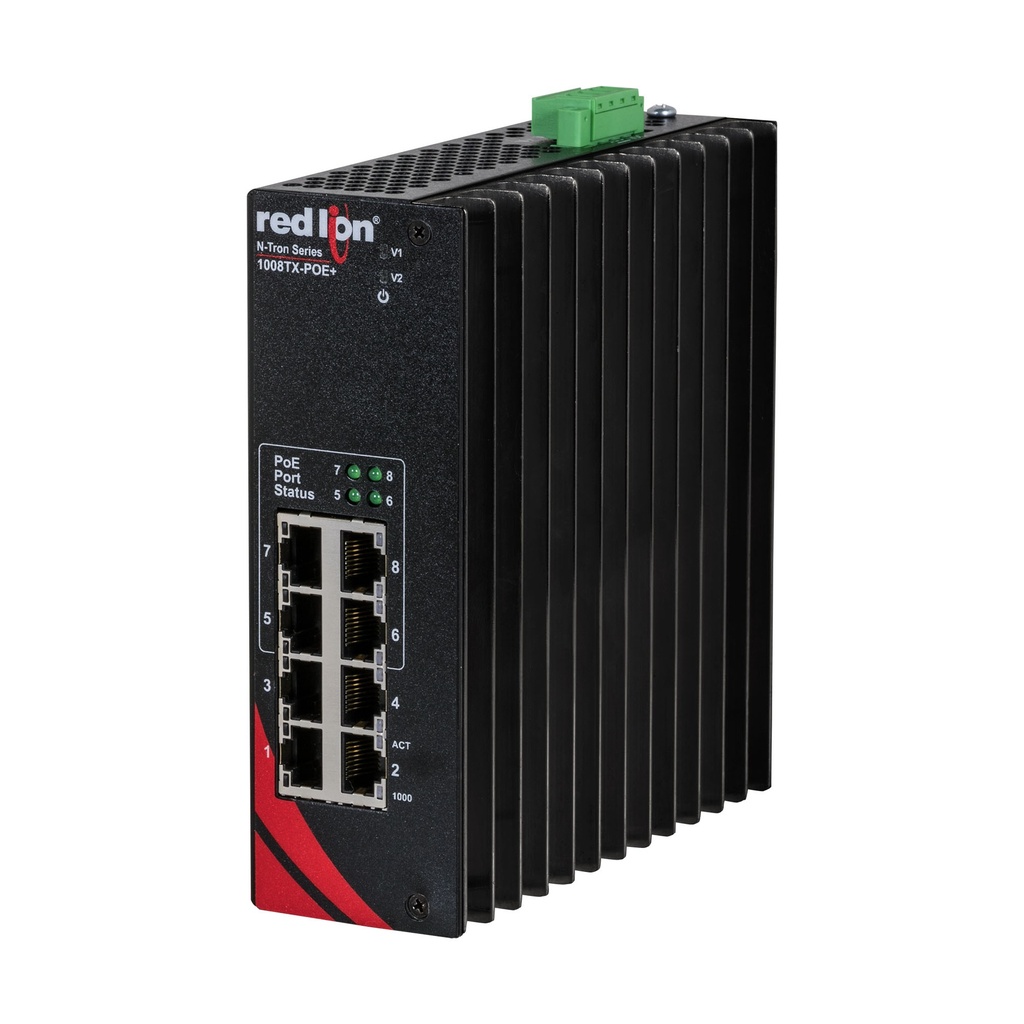

1000-PoE+, 8-Port, N-Tron Unmanaged Gigabit 1008TX-POE+ Ethernet Switch
Red Lion's N-Tron series 1000-POE unmanaged PoE industrial Power over Ethernet (PoE) devices offer Gigabit performance and IEEE 802.3af/at PoE+. The 1000-POE injectors provide up to 30 watts of output power and deliver the ultimate in reliability with a hardened metal DIN-rail mountable enclosure capable of being deployed in -40° to 80°C environments.
Features
- Eight 10/100/1000BaseT RJ-45 Ports
- Four IEEE 802.3af/at PoE+ ports for data and up to 30 Watts of power
- Unmanaged Operation
- Extended Environmental Specifications
- -40° to 80°C Operating Temperature
- Redundant Power Inputs (22-49 VDC)
- Boosts power to meet PoE+ output requirements
- Compact Size, Smaller Footprint
- IEEE 802.3, 802.3u, and 802.3ab Compliance
- >2M Hours MTBF
- Supports Full/Half Duplex Operation
- Up to 16.0 Gb/s Maximum Throughput
- MDIX Auto Cable Sensing (RJ-45)
- Auto Sensing Speed and Flow Control
- Full Wire Speed Communications
- Supports up to 8,000 MAC Addresses
- Jumbo Frame Support
- Store-and-forward Technology
- Redundant Power Inputs (10-49 VDC)
- LED Link Activity Indicators
- LED PoE Status Indicators
- LED Power Fault Indicators
Red Lion's N-Tron series 1000-POE unmanaged PoE industrial Power over Ethernet (PoE) devices offer Gigabit performance and IEEE 802.3af/at PoE+. The 1000-POE injectors provide up to 30 watts of output power and deliver the ultimate in reliability with a hardened metal DIN-rail mountable enclosure capable of being deployed in -40° to 80°C environments.
Features
- Eight 10/100/1000BaseT RJ-45 Ports
- Four IEEE 802.3af/at PoE+ ports for data and up to 30 Watts of power
- Unmanaged Operation
- Extended Environmental Specifications
- -40° to 80°C Operating Temperature
- Redundant Power Inputs (22-49 VDC)
- Boosts power to meet PoE+ output requirements
- Compact Size, Smaller Footprint
- IEEE 802.3, 802.3u, and 802.3ab Compliance
- >2M Hours MTBF
- Supports Full/Half Duplex Operation
- Up to 16.0 Gb/s Maximum Throughput
- MDIX Auto Cable Sensing (RJ-45)
- Auto Sensing Speed and Flow Control
- Full Wire Speed Communications
- Supports up to 8,000 MAC Addresses
- Jumbo Frame Support
- Store-and-forward Technology
- Redundant Power Inputs (10-49 VDC)
- LED Link Activity Indicators
- LED PoE Status Indicators
- LED Power Fault Indicators
Specifications
| Manufacturer Product Family | 1000-PoE+ Series Devices |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 80 °C |
| Mounting Options | DIN Rail |
| Case Material | Metal |
| No. Ports | 8 |
| 10/100/1000 Ports | 8/4 PoE+ |
| Switch Type | PoE Switch |
| Standards | IEEE802.3at |
