Turck Radar Sensor, Distance/Object Detection (DR15S-M30E-IOL8X2-H1141)
Representative photo. Please check item description for details.

Turck Radar Sensor, Distance/Object Detection (DR15S-M30E-IOL8X2-H1141)

https://www.branom.com/web/image/product.template/544557/image_1920?unique=c26756c
(0 review)
Radar Sensor Features
  • Distance/Object Detection
  • Operating voltage 18…33 VDC
  • Max. range 15000 mm
  • Blind zone: 35 cm
  • Range: 15 m
  • Resolution: 1 mm
  • Cone angle of the radar beam: Standard ±7.5°
  • Approved acc. to ETSI 305550-2
  • Approved acc. to FCC/CFR 47 Part 15.
  • M12 × 1 male connector
  • 4-pin
  • Operating voltage 18…33 VDC
  • Operating voltage 10…33 VDC (in SIO mode)
  • Switching output switchable between PNP/NPN
  • Analog output switchable between 4…20 mA/0…10 V
  • Automatic current/voltage detection
  • IO-Link

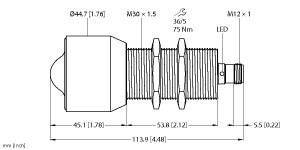

  • M30 cylindrical design
  • stainless steel

$ 857.24 857.24 USD $ 857.24

$ 857.24

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
