Representative photo. Please check item description for details.

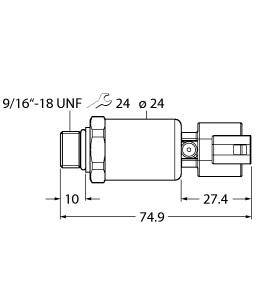

Turck Pressure Transmitter, With Current Output (2-Wire) (PT100R-2121-I2-DT043P)
Pressure Transmitter Features
- With Current Output (2-Wire)
- For mobile hydraulic applications
- Fully welded metal measuring cell
- Sealless
- With pressure tip orifice
- Compact and robust design
- Excellent EMC properties
- Excellent accuracy and long-term stability
- Kfz-Norm ISO 16750
- Pressure range 0…100 bar rel.
- 7.5…33 VDC
- Analog output 4…20 mA
- Process connection 9/16-18 UNF (SAE) male thread
- Plug-in device
- Deutsch DT04-3P
- "
Pressure Transmitter Features
- With Current Output (2-Wire)
- For mobile hydraulic applications
- Fully welded metal measuring cell
- Sealless
- With pressure tip orifice
- Compact and robust design
- Excellent EMC properties
- Excellent accuracy and long-term stability
- Kfz-Norm ISO 16750
- Pressure range 0…100 bar rel.
- 7.5…33 VDC
- Analog output 4…20 mA
- Process connection 9/16-18 UNF (SAE) male thread
- Plug-in device
- Deutsch DT04-3P
- "
Specifications
| Measurement Maximum | 1450.0 |
| Case Material | 304 SS & Plastic |
| Measurement Minimum | 0 |
| Output Communication Protocol | 4-20 mADC |
