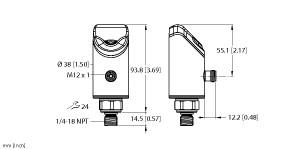

Representative photo. Please check item description for details.
Turck Pressure Sensor, Relative Pressure: -1…10 Bar (PS510-10V-03-LI2UPN8-H1141)
Pressure Sensor Features
- Relative Pressure: -1…10 Bar
- 4-digit
- 2-colored
- 12-segment display
- rotatable by 180°
- Housing is rotatable after plugging the process connection
- Metal measuring cell
- 18…33 VDC
- NO/NC contact
- PNP/NPN output
- analog output (current/voltage)
- IO-Link
- Process connection 1/4" NPT male thread
- Connector device
- M12 × 1
Pressure Sensor Features
- Relative Pressure: -1…10 Bar
- 4-digit
- 2-colored
- 12-segment display
- rotatable by 180°
- Housing is rotatable after plugging the process connection
- Metal measuring cell
- 18…33 VDC
- NO/NC contact
- PNP/NPN output
- analog output (current/voltage)
- IO-Link
- Process connection 1/4" NPT male thread
- Connector device
- M12 × 1
Specifications
| Measurement Maximum | 145.0 |
| Process Connection Type | NPT-Male |
| Process Connection Location | Bottom |
| Measurement Minimum | -14.5 |
| Output Communication Protocol | 4-20 mADC |
