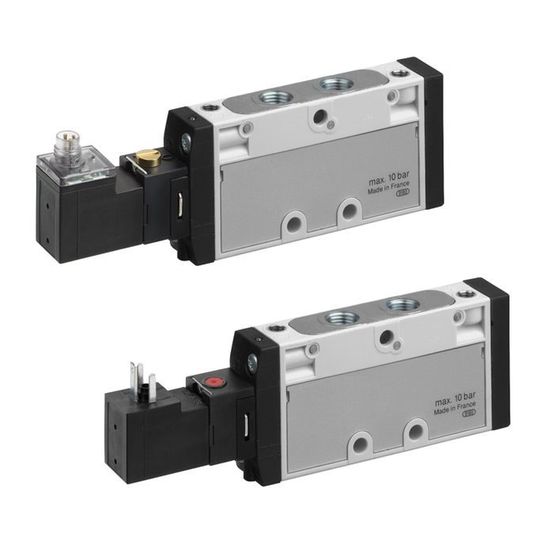

Representative photo. Please check item description for details.
AVENTICS TC08 Series 5/2 Directional Valve, G 1/8 Plate/Pipe, ISO 15217 Plug, Spring/Air Spring Return, Man. Override w/o Detent
The AVENTICS Series TC08/TC15 includes a wide range of spool valves with housings made of high-performance polymers with robust and flexible metal inserts. It is designed for flow rate performances from 800 to 1500 l/min. These directional valves are easy to assemble, making them ideal for applications requiring the highest efficiency in limited spaces.
Features
- Activation: Electrically
- Nominal flow Qn: 800 l/min
- Switching principle: 5/2
- Compressed air connection output: G 1/8
- Working pressure min.: -0.9 bar
- Working pressure max: 10 bar
- DC operating voltage: 24 V
- Voltage tolerance DC: -10% / +10%
- Manual override: without detent
- Electrical connection type: Plug
- Electrical connection size: ISO 15217, form C
- Actuating control: Single Solenoid
- Sealing principle: Soft Seal
- Pilot: External
- Pilot valve width: 15 mm
- Valve type: Spool valve, positive overlapping
- Connection type: Plate connection, Pipe connection
- Return: with spring/air spring return
- Blocking principle: Plate principle
- Can be assembled into blocks: Can be assembled into blocks
- Control pressure min.: 3 bar
- Control pressure max.: 10 bar
- Min. ambient temperature: -10 °C
- Max. ambient temperature: 50 °C
- Min. medium temperature: -10 °C:
