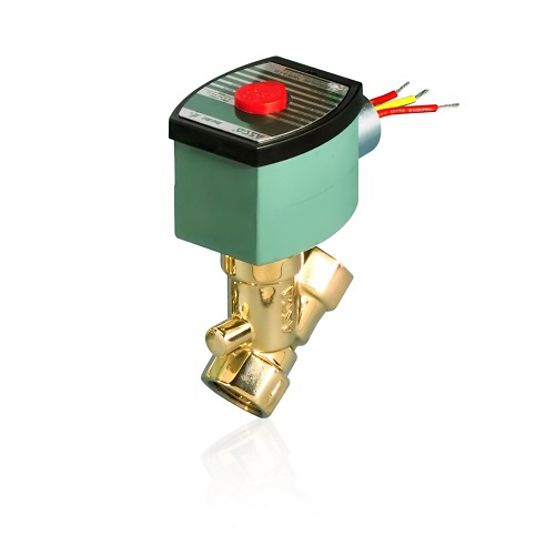

030 Series NC Low-Pressure Solenoid Valve

‎

Representative photo. Please check item description for details.

Product	Product specifications	Lead length	Test	Stock	Price
8030G010AC24/60D	[G010] Brass \| 3/8" Pipe \| 3/8" Orifice \| 1.8 Cv Flow	18" [D]	sample	10 IN STOCK	$ 202.00
8030G013AC120/60,110/50VMD	[G013] Brass \| 3/8" Pipe \| 3/8" Orifice \| 1.8 Cv Flow	18" [D]	sample	3 IN STOCK	$ 202.00
8030G013AC240/60D	[G013] Brass \| 3/8" Pipe \| 3/8" Orifice \| 1.8 Cv Flow	18" [D]	sample	MADE TO ORDER	$ 202.00
8030G016AC120/60,110/50D	[G016] Brass \| 1/2" Pipe \| 7/16" Orifice \| 2.8 Cv Flow	18" [D]	sample	MADE TO ORDER	$ 202.00
8030G016AC120/60D	[G016] Brass \| 1/2" Pipe \| 7/16" Orifice \| 2.8 Cv Flow	18" [D]	sample	MADE TO ORDER	$ 202.00
8030G017AC110/50VHD	[G017] Brass \| 1/2" Pipe \| 7/16" Orifice \| 2.8 Cv Flow	18" [D]	sample	MADE TO ORDER	$ 202.00
8030G017AC120/60D	[G017] Brass \| 1/2" Pipe \| 7/16" Orifice \| 2.8 Cv Flow	18" [D]	sample	MADE TO ORDER	$ 202.00
EF8030G010AC120/60,110/50D	[G010] Brass \| 3/8" Pipe \| 3/8" Orifice \| 1.8 Cv Flow	18" [D]	sample	MADE TO ORDER	$ 202.00
EFHT8030G003MBAC110/50D	[G003] Brass \| 3/4" Pipe \| 3/4" Orifice \| 5 Cv Flow	18" [D]	sample	MADE TO ORDER	$ 202.00
EFHTL8030G003MBAC110/50K	[G003] Brass \| 3/4" Pipe \| 3/4" Orifice \| 5 Cv Flow	72" [K]	sample	MADE TO ORDER	$ 202.00
HT8030G016AC120/60,110/50D	[G016] Brass \| 1/2" Pipe \| 7/16" Orifice \| 2.8 Cv Flow	18" [D]	sample	MADE TO ORDER	$ 202.00
KB8030G043AC24/60D	[G043] Brass \| 3/4" Pipe \| 3/4" Orifice \| 5 Cv Flow	18" [D]	sample	MADE TO ORDER	$ 202.00

The ASCO Series 030, also known as 8030, is a direct-acting low-pressure solenoid valve with up to 15 psi (1 Bar) maximum differential. Valves available in brass or stainless steel, normally open or normally closed and pipe sizes 3/8-inch thru 3/4. They are widely used for dispensing, collating, vacuum holding, tank draining and gas shutoff applications. The normally open version is well suited for gas venting.

Features

Ideal for low pressure general service and vacuum applications
Brass constructions available for fuel gas service in commercial and industrial gas burners
Gas shutoff model has 2-way normally closed operation
Gas vent model has 2-way normally open operation
Most constructions mountable in any position for convenient installation

Specifications

8030 Series NC Low-Pressure Sol Valve
Product Specifications	[G010] Brass \| 3/8" Pipe \| 3/8" Orifice \| 1.8 Cv Flow, [G013] Brass \| 3/8" Pipe \| 3/8" Orifice \| 1.8 Cv Flow, [G016] Brass \| 1/2" Pipe \| 7/16" Orifice \| 2.8 Cv Flow, [G017] Brass \| 1/2" Pipe \| 7/16" Orifice \| 2.8 Cv Flow, [G003] Brass \| 3/4" Pipe \| 3/4" Orifice \| 5 Cv Flow, [G043] Brass \| 3/4" Pipe \| 3/4" Orifice \| 5 Cv Flow, [G064] Stainless Steel \| 3/8" Pipe \| 3/8" Orifice \| 1.8 Cv Flow, [G065] Stainless Steel \| 3/8" Pipe \| 3/8" Orifice \| 1.8 Cv Flow, [G066] Stainless Steel \| 1/2" Pipe \| 7/16" Orifice \| 2.8 Cv Flow, [G067] Stainless Steel \| 1/2" Pipe \| 7/16" Orifice \| 2.8 Cv Flow, [G063] Stainless Steel \| 3/4" Pipe \| 5/8" Orifice \| 5.4 Cv Flow
Solenoid Option	None, [EF] Explosionproof, [EF] Explosionproof (G017, G067), [EF] Explosionproof (G010, G016, G064, G066), [J] Junction Box, [JB] Factory Assembled Junction Box, [JBEF] Factory Assembled Junction Box & Explosionproof, 1/2" Conduit, [JBEF] Factory Assembled Junction Box & Explosionproof, 1/2" Conduit (G017, G067), [JCEF] Factory Assembled Junction Box & Explosionproof, 3/4" Conduit, [OF] Open Frame Spade and Screw Terminal Solenoids
Coil Options	None, [HB] Class H - Intermediate Power, [HT] Class H - High Temperature, [KB] Class H - Intermediate Power - Screw Terminals, [KF] Class F - High Temperature - Screw Terminals, [KH] Class H - High Temperature - Screw Terminals, [KP] Class F - Intermediate Power - Screw Terminals, [SC] Class F - High Temperature - DIN Connection, [SD] Class F - Intermediate Power - DIN Connection, [SF] Class F - High Temperature - Spade Terminals, [SP] Class F - Intermediate Power - Spade Terminals, [SS] Class H - Intermediate Power - Spade Terminals, [ST] Class H - High Temperature - Spade Terminals, [SU] Class H - High Temperature - DIN Connection, [SV] Class H - Intermediate Power - DIN Connection, [ZT] Class F - High Temperature - Mini 3 Pin Connector
Optional Lead Type	Standard, [L] Continuous Leads
Lead Length	Standard, 18" [D], 72" [K]
Optional Seat/Disc/Etc. Material	None, [V] FKM
Optional Mounting Bracket	Without, [MB] Mounting Bracket
Optional Manual Operator	None, [MO] Manual Operator
Optional Vacuum	Without, [VM] Medium Vacuum, [VH] High Vacuum
Voltage	AC24/60, AC110/50, AC120/60, AC120/60,110/50, AC220/50, AC240/60, AC240/60,220/50, DC6/DC, DC12/DC, DC24/DC, DC120/DC, DC240/DC

Valve Features
Valve: Body Material	Copper Alloy, Stainless Steel
Valve: Core and Plugnut	Stainless Steel
Valve: Core Springs	Stainless Steel
Valve: Shading Coil	Copper, Silver
Valve: Stem	PA
Valve: Enclosure Type	Watertight, Explosionproof & Watertight
Valve: Media	Air-Inert Gas, Natural Gas, Water
Valve: Function	2-Way Normally Closed
Valve: Actuation	Solenoid - Direct Acting
Valve: Brand	Asco
Valve: Mounting Position	Any, Vertical & Upright
Valve: Core Tube	Stainless Steel
Valve: Min Temperature °F	32
Valve: Max Temperature °F	125
Valve: Flow Factor (Cv)	5.4, 1.8
Valve: Pressure (psi)	< 20 psi (1.38 bar)
Valve: Seal Material	NBR
Valve: Disc Material	NBR
Valve: Pipe Size	3/8 in, 1/2 in, 3/4 in, 3/8 in
