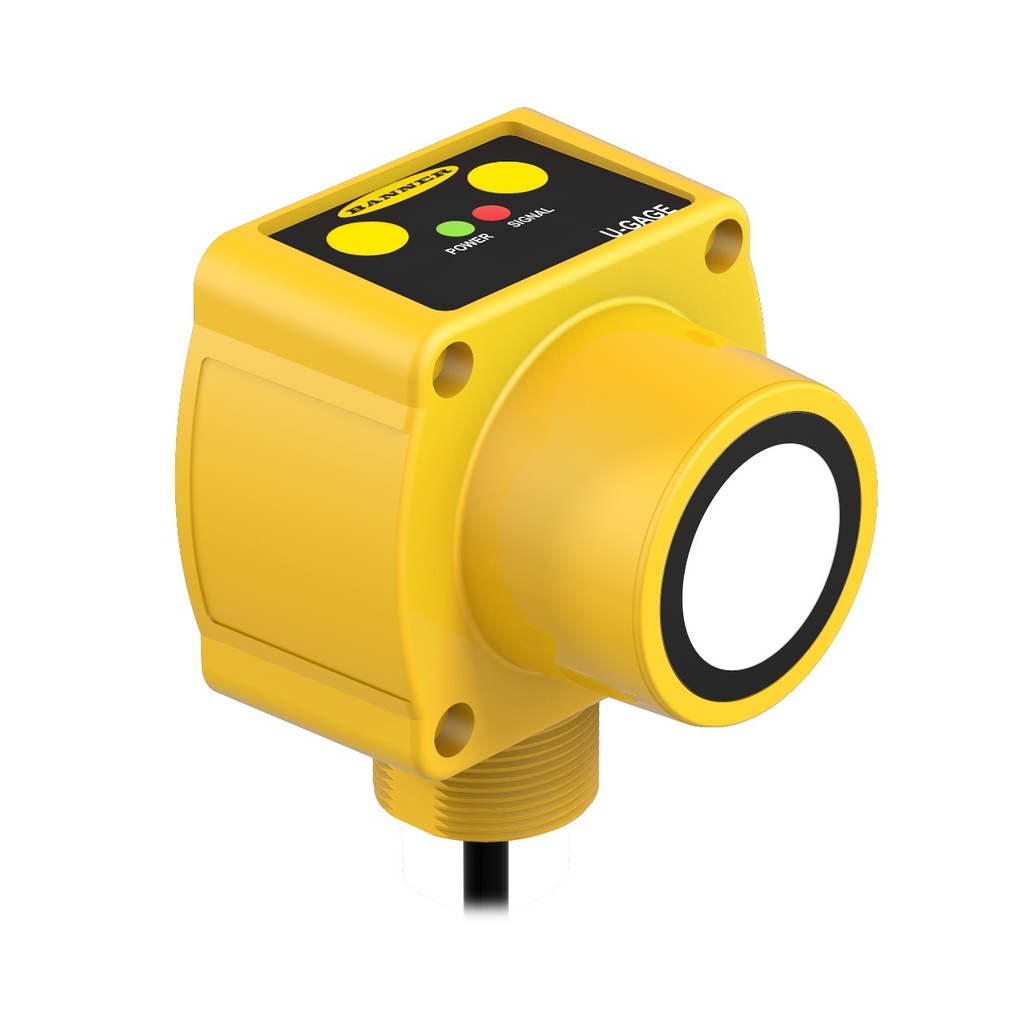

Representative photo. Please check item description for details.

QT50U Dual-Discrete Series: Proximity Mode (QT50UDB W/30)

https://www.branom.com/web/image/product.template/787/image_1920?unique=c26756c
(0 review)

Features:

  • QT50U Dual-Discrete Series: Proximity Mode
  • Range: 200mm to 8m
  • Input: 10-30V dc
  • Outputs: 2 Discrete NPN or PNP
  • 9 m (30 ft) Cable
  • Max Off-State Leakage Current (µA): 5 µA
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 70 °C
  • Power/Current Consumption (exclusive of load): 100 mA max @ 10 V dc; 40 mA max @ 30 V dc
  • Power Supply: 10-30 VDC
  • Temperature Effect (mm/°C): Uncompensated: 0.2% of distance/°C; Compensated: 0.02% of distance/°C
  • Delay at Power-Up: 1500 ms
  • Ingress Protection: IP67
  • Sensing Beam: Ultrasonic
  • Housing Style: Rectangular
  • Max Sensing Distance: 8000 mm
  • Sensing Mode (Detailed): Time of Flight
  • Sensing Mode (General): Proximity
  • Device Type: Sensor
  • Housing Material_: PBT
  • Feature: RS-232: No
  • Feature: RS-485: No
  • RS-422: No
  • Feature: IO Link: No
  • Feature: Wireless: No
  • Feature: Quick Disconnect: No
  • Max Op. Relative NC Humidity: 100%
  • Feature: Chemical Resistant: No
  • Storage Temp: -40 to 90 °C
  • Number of Pins: 5
  • Adjustments: Push Button (s)
  • Feature: Timing (Hold/Delay): No
  • Input/Output: Discrete
  • Min Response Time: 100 ms
  • Vibration: MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
  • Feature: Ultrasonic: Yes
  • Mechanical Shock: IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
  • Output Saturation Voltage PNP Outputs: < 1.2 V @ 10 mA / <1.65 V @ 100 mA
  • Analog Resolution/Discrete Repeatability: 1
  • Max Discrete (Switched) Output (mA): 150
  • Min Sensing Distance: 200 mm
  • Feature: Clear Object Detection: Yes
  • Min Window Size: 20 mm
  • Discrete (Switched) Outputs: 2 NPN/PNP Configurable
  • Max Measurement Range: 1-20 m
  • Output Protection: Protected against short circuit conditions
  • SSI: No
  • Profibus: No
  • Feature: Remote Teach: Yes
  • Output Saturation Voltage NPN Outputs: <0.2 V @ 10 mA / <0.65 V @ 150 mA
  • Supply Protection Circuitry: Protected against reverse polarity and transient overvoltages
  • Connection Type: Flying Leads
  • NEMA / UL: NEMA 6P
  • Cord/Cable Length: 9 m
  • Feature: Common Ethernet Protocol: No
  • Feature: Pump-In/Pump-Out: Yes
  • Feature: PC Configurable: No
  • Indicator Type: LED
  • Warm-Up Time: 15 min
  • Rep Rate: 96 ms
  • Discrete Output Hysteresis: 5 mm
  • Ultrasonic Frequency: 75 kHz

$ 1,043.00 1043.0 USD $ 1,043.00

$ 1,043.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share

    Features:

    • QT50U Dual-Discrete Series: Proximity Mode
    • Range: 200mm to 8m
    • Input: 10-30V dc
    • Outputs: 2 Discrete NPN or PNP
    • 9 m (30 ft) Cable
    • Max Off-State Leakage Current (µA): 5 µA
    • Min Operating Temperature: -20 °C
    • Max Operating Temperature: 70 °C
    • Power/Current Consumption (exclusive of load): 100 mA max @ 10 V dc; 40 mA max @ 30 V dc
    • Power Supply: 10-30 VDC
    • Temperature Effect (mm/°C): Uncompensated: 0.2% of distance/°C; Compensated: 0.02% of distance/°C
    • Delay at Power-Up: 1500 ms
    • Ingress Protection: IP67
    • Sensing Beam: Ultrasonic
    • Housing Style: Rectangular
    • Max Sensing Distance: 8000 mm
    • Sensing Mode (Detailed): Time of Flight
    • Sensing Mode (General): Proximity
    • Device Type: Sensor
    • Housing Material_: PBT
    • Feature: RS-232: No
    • Feature: RS-485: No
    • RS-422: No
    • Feature: IO Link: No
    • Feature: Wireless: No
    • Feature: Quick Disconnect: No
    • Max Op. Relative NC Humidity: 100%
    • Feature: Chemical Resistant: No
    • Storage Temp: -40 to 90 °C
    • Number of Pins: 5
    • Adjustments: Push Button (s)
    • Feature: Timing (Hold/Delay): No
    • Input/Output: Discrete
    • Min Response Time: 100 ms
    • Vibration: MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
    • Feature: Ultrasonic: Yes
    • Mechanical Shock: IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
    • Output Saturation Voltage PNP Outputs: < 1.2 V @ 10 mA / <1.65 V @ 100 mA
    • Analog Resolution/Discrete Repeatability: 1
    • Max Discrete (Switched) Output (mA): 150
    • Min Sensing Distance: 200 mm
    • Feature: Clear Object Detection: Yes
    • Min Window Size: 20 mm
    • Discrete (Switched) Outputs: 2 NPN/PNP Configurable
    • Max Measurement Range: 1-20 m
    • Output Protection: Protected against short circuit conditions
    • SSI: No
    • Profibus: No
    • Feature: Remote Teach: Yes
    • Output Saturation Voltage NPN Outputs: <0.2 V @ 10 mA / <0.65 V @ 150 mA
    • Supply Protection Circuitry: Protected against reverse polarity and transient overvoltages
    • Connection Type: Flying Leads
    • NEMA / UL: NEMA 6P
    • Cord/Cable Length: 9 m
    • Feature: Common Ethernet Protocol: No
    • Feature: Pump-In/Pump-Out: Yes
    • Feature: PC Configurable: No
    • Indicator Type: LED
    • Warm-Up Time: 15 min
    • Rep Rate: 96 ms
    • Discrete Output Hysteresis: 5 mm
    • Ultrasonic Frequency: 75 kHz
