  3. Analog S18U Right-Angle Series: Proximity Mode; Range: 30-300 mm; Input 12-30 V dc; Outputs: Analog 0-10 V; 9 m (30 ft) Cable (S18UUAR W/30)
Public Pricelist (v2)

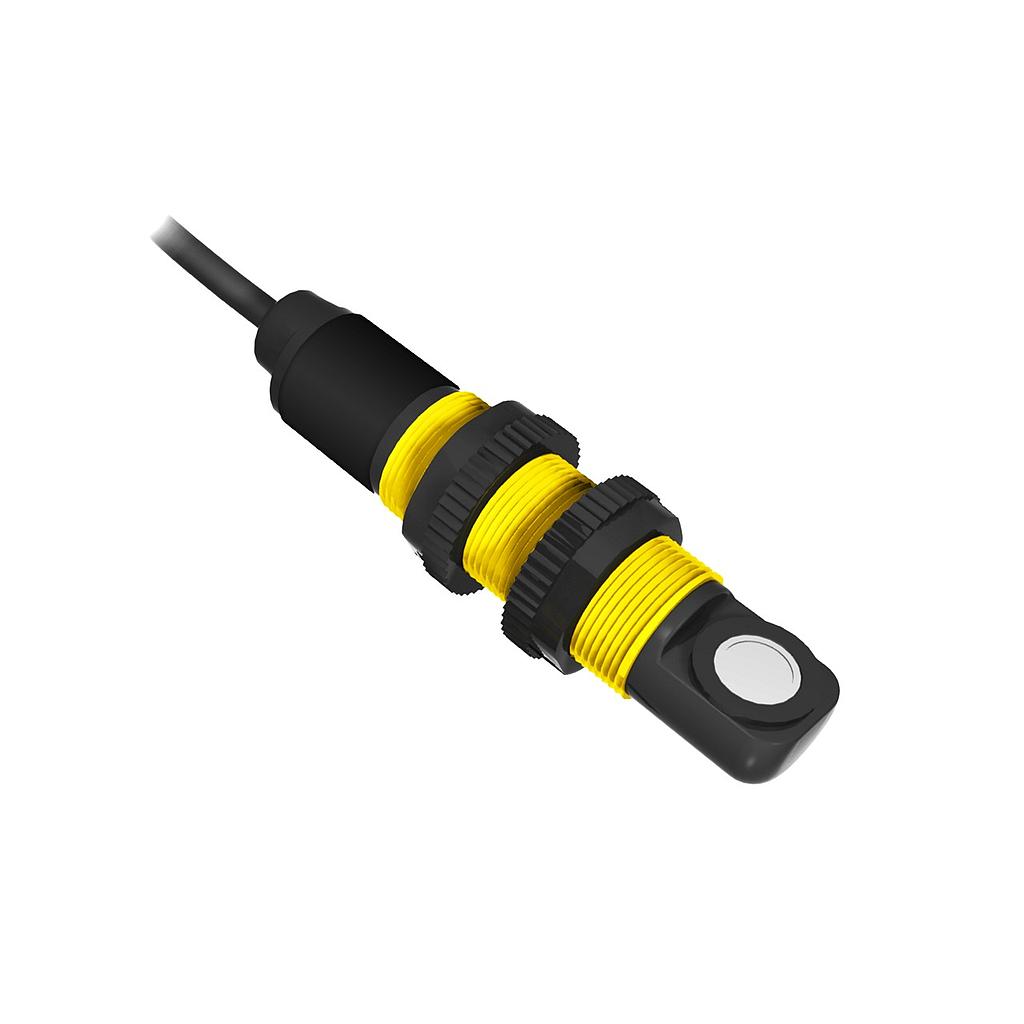

Representative photo. Please check item description for details.

Analog S18U Right-Angle Series: Proximity Mode; Range: 30-300 mm; Input 12-30 V dc; Outputs: Analog 0-10 V; 9 m (30 ft) Cable (S18UUAR W/30)

https://www.branom.com/web/image/product.template/773/image_1920?unique=c26756c
(0 review)

Features:

  • Analog S18U Right-Angle Series: Proximity Mode
  • Range: 30mm to 300mm
  • Input 12-30V dc
  • Outputs: Analog 0-10V
  • 9 m (30 ft) Cable
  • Max Operating Temperature: 60 °C
  • Power/Current Consumption (exclusive of load): 65 mA max; 40 mA @ 25 V dc
  • Temperature Warm-up Drift upon Power-up: Temp. compensation enabled, < 1.0% of the sensing distance upon power-up.
  • Delay at Power-Up: 300 ms
  • Ingress Protection: IP67
  • Sensing Beam: Ultrasonic
  • Housing Style: Barrel - Right Angle
  • Max Sensing Distance: 300 mm
  • Sensing Mode (Detailed): Time of Flight
  • Feature: RS-232: No
  • Feature: RS-485: No
  • RS-422: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Max Op. Relative NC Humidity: 100%
  • Feature: Chemical Resistant: No
  • Number of Pins: 5
  • Feature: Timing (Hold/Delay): No
  • Feature: Ultrasonic: Yes
  • Profibus: No
  • Feature: PC Configurable: No
  • Indicator Type: LED
  • Warm-Up Time: 10 min
  • Ultrasonic Frequency: 300 kHz

$ 522.00 522.0 USD $ 522.00

$ 522.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share
