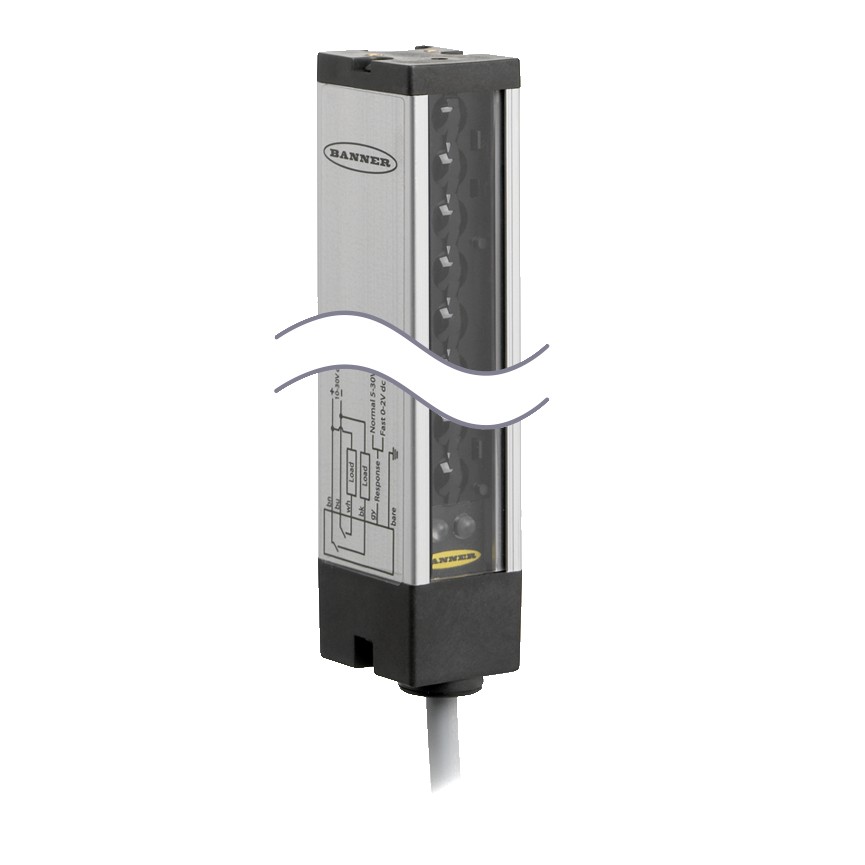

LX Series: Emitter (LX12EQ)

https://www.branom.com/web/image/product.template/756/image_1920?unique=c26756c
(0 review)

Features:

  • LX Series: Emitter
  • Standard Range
  • Range: Normal 300 mm to 2 m
  • Input: 10-30V dc
  • Output: No output
  • Quick-Disconnect Connector
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Ingress Protection: IP65
  • Housing Style: Array
  • Max Sensing Distance: 2000 mm
  • Sensing Mode (Detailed): Emitter
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Aluminum
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M12
  • Number of Pins: 5
  • Output Response Time: 3.2 ms ON/8.5 ms OFF
  • Feature: Remote Teach: No
  • Min Object Detection: 9.5 mm
  • Connection Type: Pigtail QD
  • Cord/Cable Length: 0.15 m
  • Indicator Type: LED
  • Slot Depth/Array Length (mm): 295 mm
  • Slot Overall Depth (mm): 25.4 mm
