LS-1950 LEVEL SWITCH FLOAT SPST 20VA 316SS

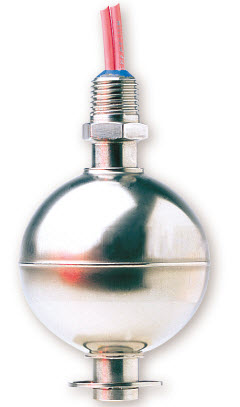

Representative photo. Please check item description for details.

LS-1950 LEVEL SWITCH FLOAT SPST 20VA 316SS

https://www.branom.com/web/image/product.template/176671/image_1920?unique=c26756c
(0 review)

LS-1950 Series Single-Point Level Switches provide high temperature and pressure capabilities for high performance applications, including oils, water and chemicals. The materials of construction comply with FDA food contact regulations and the switch

is exceptionally accurate and rugged for higher temperatures and in pressurized or corrosive liquids.

  • Sku: 01950
  • Model: LS-1950
  • Sensor Type: Float Type
  • Primary Material Of Construction: Alloy
  • Wetted Materials: 316 Stainless Steel
  • Stem Material: Stainless Steel
  • Float Material: 316 Stainless Steel
  • Float Diameter: 2 1/16"
  • Actuation Level: 1 3/32"
  • Min. Liquid SG: 0.75
  • Maximum Pressure: 750 psi
  • Minimum Temperature: -40°F
  • Maximum Temperature: 480°F
  • Mounting Size: 1/4" NPT Male
  • Mounting Style: Vertical
  • Electrical Termination: 25" Long, 18 AWG, Polymeric Leads
  • Switch Type: SPST (20 VA)
  • Switch Operation: Normally Open: (Reversible)
  • Input: N/A
  • Output: N/A
  • Approvals: UL Recognized, CSA Listed, CE,: ROHS

      • This combination does not exist.
